CGF Aluminium Alloy Corona-Proof Suspension Clamp for 500kV Transmission Wire

Tlhaloso e Khutšoanyane:


Lintlha tsa Sehlahisoa

Li-tag tsa Sehlahisoa

Tlhaloso:

Li-clamp tsa ho emisa li sebelisoa haholo-holo bakeng sa lithapo tsa motlakase tse holimo.Lithapo li fanyehiloe ho li-insulators kapa li-conductor tsa lehalima li fanyehiloe litorang tsa lipalo ka li-fittings tsa khokahano.

Li-clamps tsa tšepe tse ka tšeptjoang tsa setso li na le bofokoli ba tahlehelo e kholo ea hysteresis, tahlehelo ea hona joale ea lesoba le lihlahisoa tse ngata.Aluminium alloy clamp e na le melemo ea tahlehelo e nyane haholo ea hysteresis le tahlehelo ea hona joale ea eddy, boima bo bobebe le kaho e bonolo.E kopana le ditlhoko tsa ho baballa eneji le phokotso ya tshebediso ya phetolo le kaho ya keriti ya naha ya motlakase.

Ha thapo e emisitsoeng e sebelisoa bakeng sa terata e kholemisitsoeng ea aluminium le terata ea tšepe ea mantlha ea aluminium, e ka phutheloa ka sheathing ea aluminium kapa terata e sireletsang ho sireletsa terata.Bophara ba ka ntle bo sebetsang ba terata bo kenyelletsa liphutheloana.

Peresente ea matla a ho ts'oara sekontiri sa terata se lekantsoeng:

Sehlopha sa Mohala

Sebopeho sa Mohala(Aluminium Ratio)

Peresente

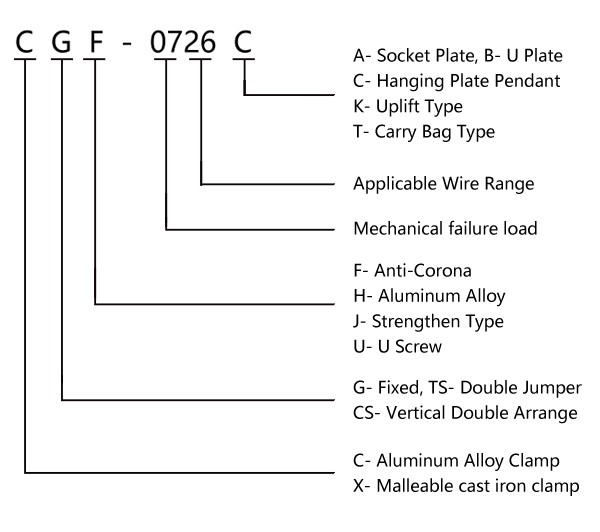

 CGF Aluminum Alloy Corona-Proof Suspension Clamp for 500kV Transmission Wire1

ACSR
(Tsela ea tšepe ea mantlha ea aluminium stranded)

>1.7

12

4.0-4.5

18

5.0-6.5

20

7.0-8.0

22

11.0-20.2

24

Mohala oa tšepe

Matla a ho qetela 1176-1274

14

Aluminium teranded terata



30



Mofuta

Moetso o lekanang


E loketse sebaka sa bophara ba terata
(ho kenyeletsoa le phuthetsoe)(mm)

Boholo ba boholo(mm)

Mojaro oa ho hloleha ka lebitso
(kN)

Boima ba tšupiso
(kg)

H

R

C

M

CGF-0734K

CGF-5K

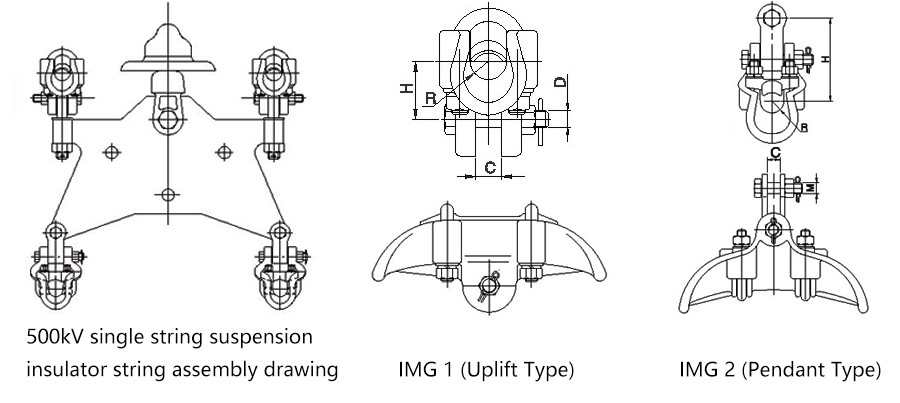

Setšoantšo sa IMG1

Φ26.0 ~ 34.0

55

17

24

16

70

3.0

CGF-1040K

Φ34.0 ~ 40.0

60

20

24

18

100

3.6

CGF-1046K

CGF-6K

Φ40.0 ~ 46.0

63

23

26

18

100

3.6

CGF-0734C

CGF-5C

Setšoantšo sa IMG2

Φ26.0 ~ 34.0

130

17

20

16

70

3.3

CGF-1040C

Φ34.0 ~ 40.0

140

20

22

18

100

4.1

CGF-1046C

CGF-6C

Φ40.0 ~ 46.0

153

23

20

18

100

4.3

 CGF Aluminum Alloy Corona-Proof Suspension Clamp for 500kV Transmission Wire2
