JGW High Voltage HV Single Core Cable Fixed Clamp
Ka kopo e pharaletseng e phahameng-voltage, tlhokahalo ea lik'hebole ka har'a foro ea cable e behiloeng le mohala o phahameng oa motlakase o tlase ho ea holimo le ho ea tlase tlas'a ts'ebetso e tsitsitseng.Ho netefatsa ts'ebetso e bolokehileng ea thapo, ho nahanoa ka lintlha tse bolokang matla, k'hamphani e kentsoeng ke mosebelisi ka mekhoa e fapaneng, libaka tse fapaneng joalo ka R&D e hlahisitse letoto la lithapo tsa motlakase tse phahameng tse nang le lisebelisoa tse tsitsitseng ho fihlela litlhoko tsa bareki. .
Ka lebaka la sebopeho sa eona sa sehlahisoa se utloahala, ts'ireletso ea matla, ts'ebetsong e rorisoang ke bareki, e na le tsamaiso ea matla ea ho khothaletsa.

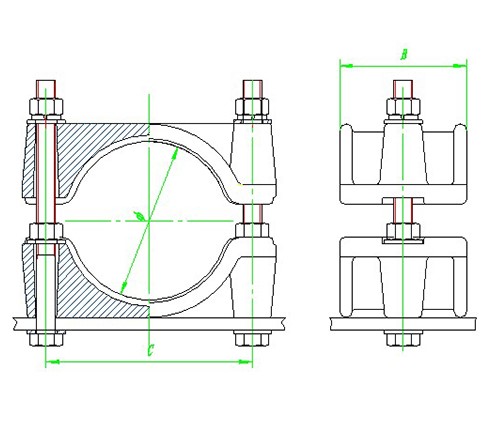

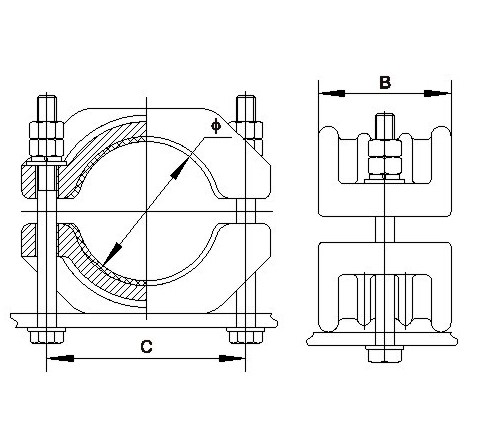

Mofuta | Mokhanni ea sebetsang | φ | C | B | Bolt | Ela hloko |
JGW-0 | φ65 ~ 75 | 75 | 115 | 60 | 2-M12 | Letlapa le nang le matla a phahameng a le mong-core steel clamp |
JGW-1 | φ75 ~ 84 | 84 | 120 | 80 | 2-M12 | |
JGW-2 | φ85 ~ 94 | 94 | 130 | 80 | 2-M12 | |
JGW-3 | φ95 ~ 104 | 104 | 140 | 80 | 2-M14 | |
JGW-4 | φ105 ~ 114 | 114 | 150 | 80 | 2-M14 | |
JGW-5 | φ115 ~ 124 | 124 | 160 | 90 | 2-M14 | |
JGW-6 | φ125 ~ 134 | 134 | 175 | 90 | 2-M16 |
Mofuta | Mokhanni ea sebetsang |
JGW-1F | φ75 ~ 84 |
JGW-2F | φ85 ~ 94 |
JGW-3F | φ95 ~ 104 |
JGW-4F | φ105 ~ 114 |
JGW-5F | φ115 ~ 124 |
JGW-6F | φ125 ~ 134 |
JGW-7F | φ135 ~ 146 |
Mofuta | Mokhanni ea sebetsang | φ | C | Bolt | Ela hloko |
JGF-70C100 | φ55 ~ 70 | 70 | 100 | 2-M12 | Non-slip high-voltage cable clamp, design e ikhethang e thibelang ho thelleha habeli, tšireletso e betere bakeng sa lithapo ho feta mehala ea setso. |
JGF-85C115 | φ70 ~ 85 | 85 | 115 | 2-M12 | |
JGF-100C130 | φ85 ~ 100 | 100 | 130 | 2-M12 | |
JGF-115C145 | φ100 ~ 115 | 115 | 145 | 2-M12 | |
JGF-130C160 | φ115 ~ 130 | 130 | 160 | 2-M12 | |
JGF-145C175 | φ130 ~ 145 | 145 | 175 | 2-M12 | |
JGF-160C190 | φ145 ~ 160 | 160 | 190 | 2-M12 | |
JGF-175C205 | φ160 ~ 175 | 175 | 205 | 2-M12 |
