NY-N Hydraulic Strain Clamp for Heat Aluminium Alloy Stranded Wire
Tlhaloso:
NY-N mofuta oa hydraulic compression strain clamp e sebelisetsoa ho lokisa le ho hokahanya conductor holim'a khoele ea insulator ea tsitsipano kapa li-fittings tse holim'a palo & tora ka ho boloka matla a tsitsitseng a hlahisoang ke conductor.
E entsoe ka aluminium e matla le lisebelisoa tsa tšepe tse phahameng, tse nang le sebaka se hloekileng le nako ea tšebeliso e tšoarellang;Khabareng ho bonolo bakeng sa ho kenya, ha ho na tahlehelo ea hysteresis, carbon e tlaase & ho boloka matla.

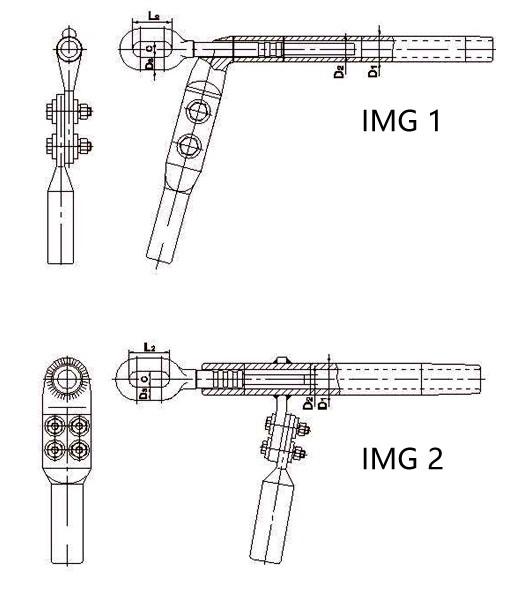

| Mofuta | Mokhanni ea sebetsang | IMG | Litekanyo tse ka Sehloohong | Tšoara | |||||
| D1 | D2 | D3 | C | L2 | |||||
|
| NY-185 / 25N | NRLH5860GJ-185/25 | 1 | 36 | 14 | 16 | 22 | 65 | 54 |
| NY-185/30N | NRLH5860GJ-185/30 | 1 | 36 | 16 | 16 | 22 | 65 | 59 | |
| NY-240/30N | NRLH5860GJ-240/30 | 1 | 45 | 18 | 18 | 24 | 70 | 69 | |
| NY-240 / 40N | NRLH5860GJ-240/40 | 1 | 45 | 18 | 18 | 24 | 70 | 77 | |
| NY-300 / 25N | NRLH5860GJ-300/25 | 1 | 50 | 14 | 18 | 24 | 70 | 76 | |
| NY-300 / 40N | NRLH5860GJ-300/40 | 1 | 50 | 16 | 20 | 24 | 70 | 85.5 | |
| NY-300 / 50N | NRLH5860GJ-300/50 | 1 | 50 | 18 | 20 | 24 | 70 | 96 | |
| NY-400/35N | NRLH5860GJ-400/35 | 2 | 55 | 16 | 20 | 26 | 78 | 93.6 | |
| NY-400 / 50N | NRLH5860GJ-400/50 | 2 | 55 | 20 | 22 | 26 | 78 | 112 | |
| NY-500/35N | NRLH5860GJ-500/35 | 2 | 65 | 18 | 22 | 26 | 78 | 109 | |
| NY-500/45N | NRLH5860GJ-500/45 | 2 | 65 | 20 | 22 | 26 | 78 | 117 | |
| NY-500 / 65N | NRLH5860GJ-500/65 | 2 | 65 | 22 | 22 | 26 | 78 | 140 | |
| NY-630/45N | NRLH5860GJ-630/45 | 2 | 70 | 18 | 22 | 26 | 78 | 133.6 | |
| NY-630 / 80N | NRLH5860GJ-630/80 | 2 | 70 | 24 | 24 | 30 | 80 | 178 | |
| NY-800 / 55N | NRLH5860GJ-800/55 | 2 | 72 | 20 | 24 | 30 | 80 | 175 | |
1.Strain clamp (terata e notletsoeng ea aluminium e thibelang mocheso, mofuta o felletseng oa ho forging, mofuta oa hydraulic) Mohlala ke NY-xxN.1
2. 'Mele oa clamp le plate ea drainage li entsoe ka aluminium,' me tse ling kaofela ke tšepe e chesang.
